How to do the slides from the details?

Nov. 14, 2019
Share:

So, how do we view whether a product is "expensive"? Mainly depends on the value of the product itself, as a Slide for Metal Drawer Wholesale we will only do a good job. Today we take an example: Concealed Slide

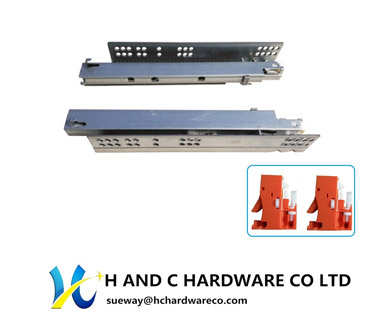

Concealed Slide

Concealed Slide

Good products are reflected in the details. How to get a good product, this needs to be improved from the details and progress. For example, the plug on the slide rail, we use plastic, wear resistance is better, which increases the service life of the product; the welding of the adjustment nail also needs a very stable process, whether the surface grinding is smooth, directly related to It is easy to adjust the adjustment of the slide rail after installation, in order to maintain the overall smoothness of the product from the details.

Furniture Buffer, its importance is equivalent to the heart function of the entire slide. Once the buffer is abnormal, oil leakage, or broken cylinder, it means that a set of slide rails loses its biggest advantage - cushion damping effect. Therefore, in terms of materials, we use metal tubing with better stability to replace the old generation of plastic tubing. The advantage of the metal tubing is that the first wear resistance is longer than the plastic tubing, which increases the service life of the slide rail. It are the heat resistance and cold resistance of metal tubing, which is better than plastic tubing. It is not easy to be affected by the climate, which causes the tubing to expand or contract. It can avoid the occurrence of oil leakage and increase the stability of the buffer rail. Moreover, our spring can also be human. Customize the pull to meet the needs of different customer groups, such as some small bedside tables, because it is small and light, the normal tension spring is easy to pull the drawer together when pulling the drawer, so In this case, you can customize the 1/2, 1/3 pull spring to easily solve this problem.

The back hook is a key part of the tight connection between the slide rail and the drawer. If the back hook is not strong, the drawer will be shaken once it has been used for a long time. Some manufacturers' processes are to directly weld the back hooks. This feature is fast in production efficiency, but the disadvantage is that the firmness is not high, it is easy to break, the welded parts are easily affected by environmental rust, and we use one-piece stamping. The molded back hook, this design is a bit higher in terms of process requirements. Its advantage is that it is stronger than welding and it is not easy to rust. Therefore, more and more customers specify the rails that require this design.

Ribs, what are the two protrusions inside the slide? what's the effect? In fact, these two inconspicuous things play a big role. Because they are unique structure, the general design is that the side plates are 90 degrees perpendicular to the bottom plate. If they are easily deformed under a large pressure, now With the reinforcing ribs on our slide rails, we can strengthen the side plates and keep the side plates perpendicular to the bottom plate at 90 degrees without deformation, thus improving the stability of the two hidden slide rails.

Through the appeal analysis of the details of the slides, I believe that everyone has an answer in mind, it is easy to produce a pair of slides, but it is not easy to make a pair of slides.
