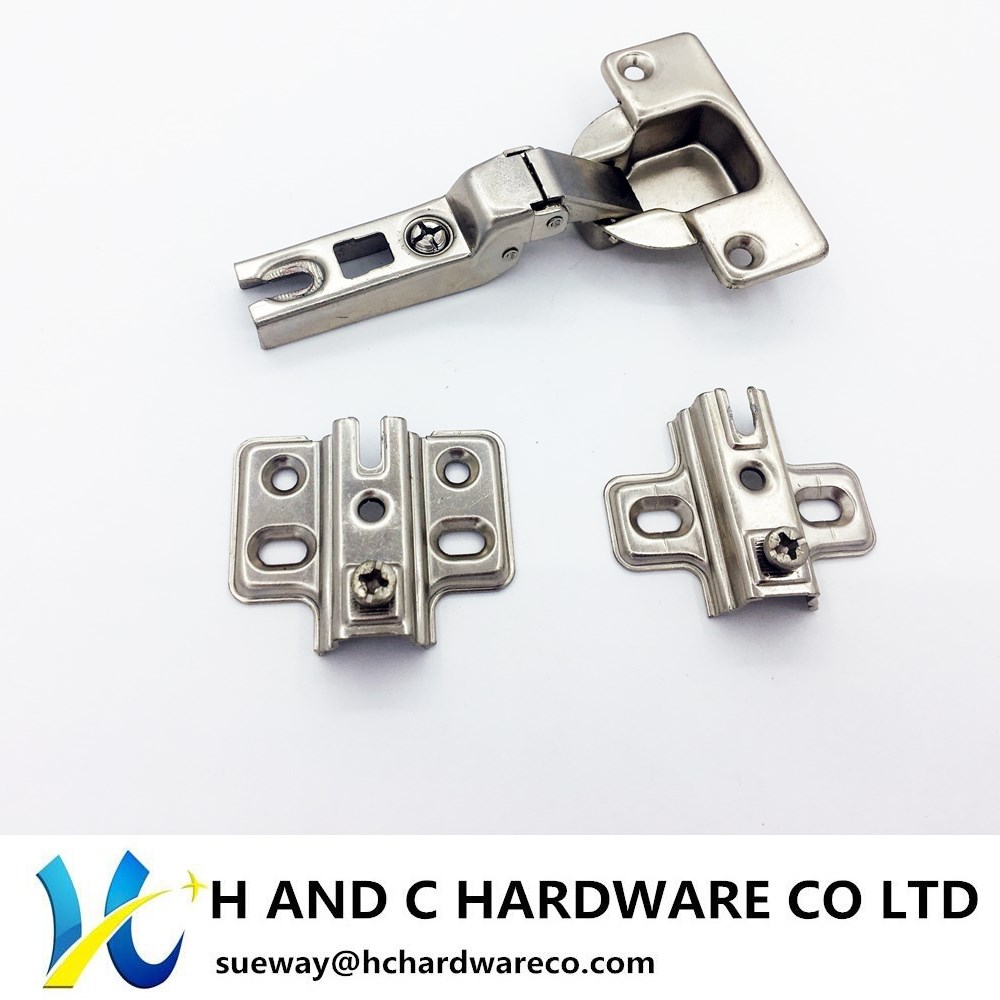

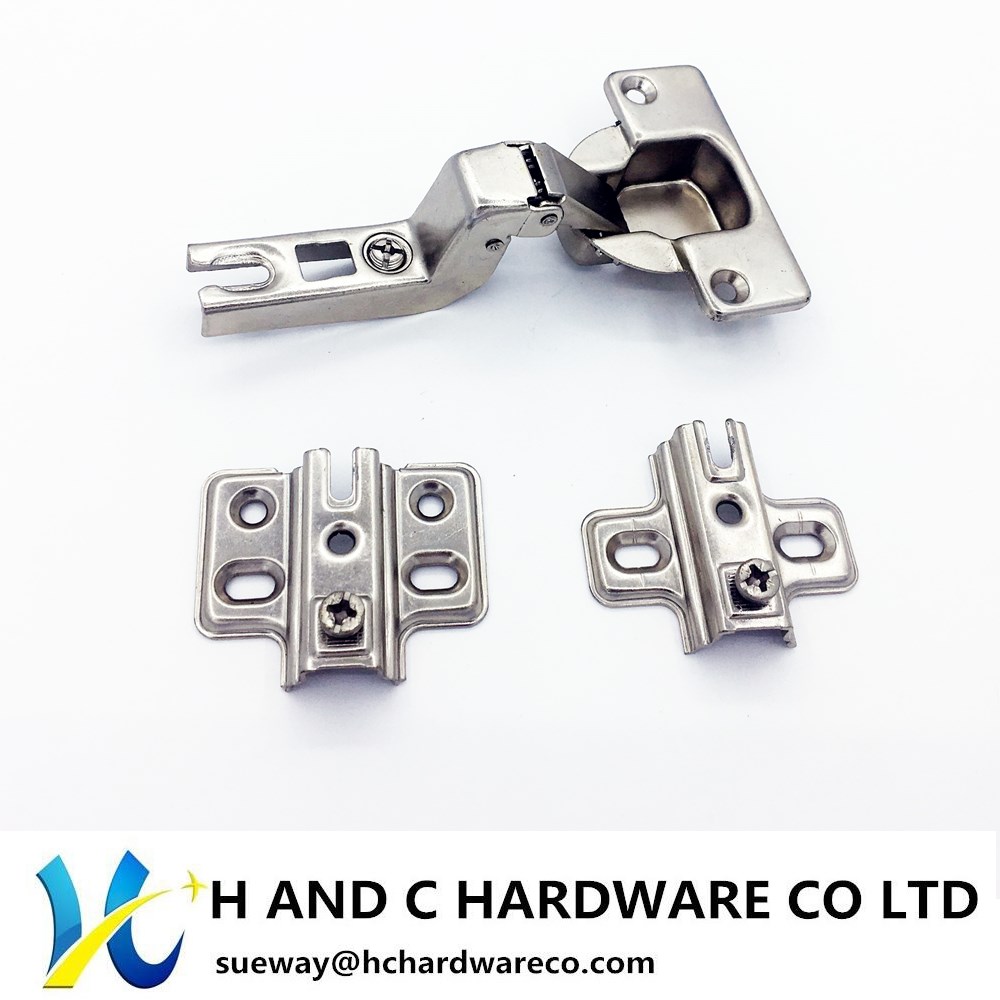

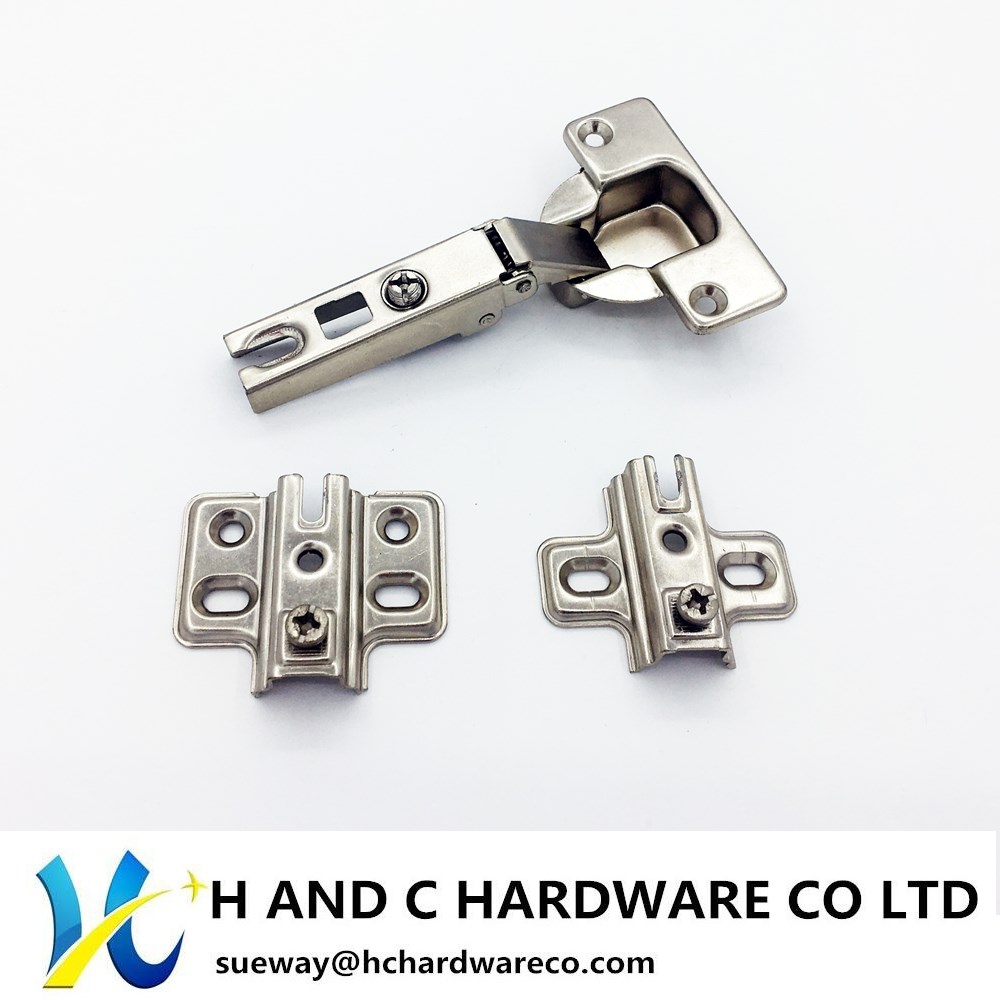

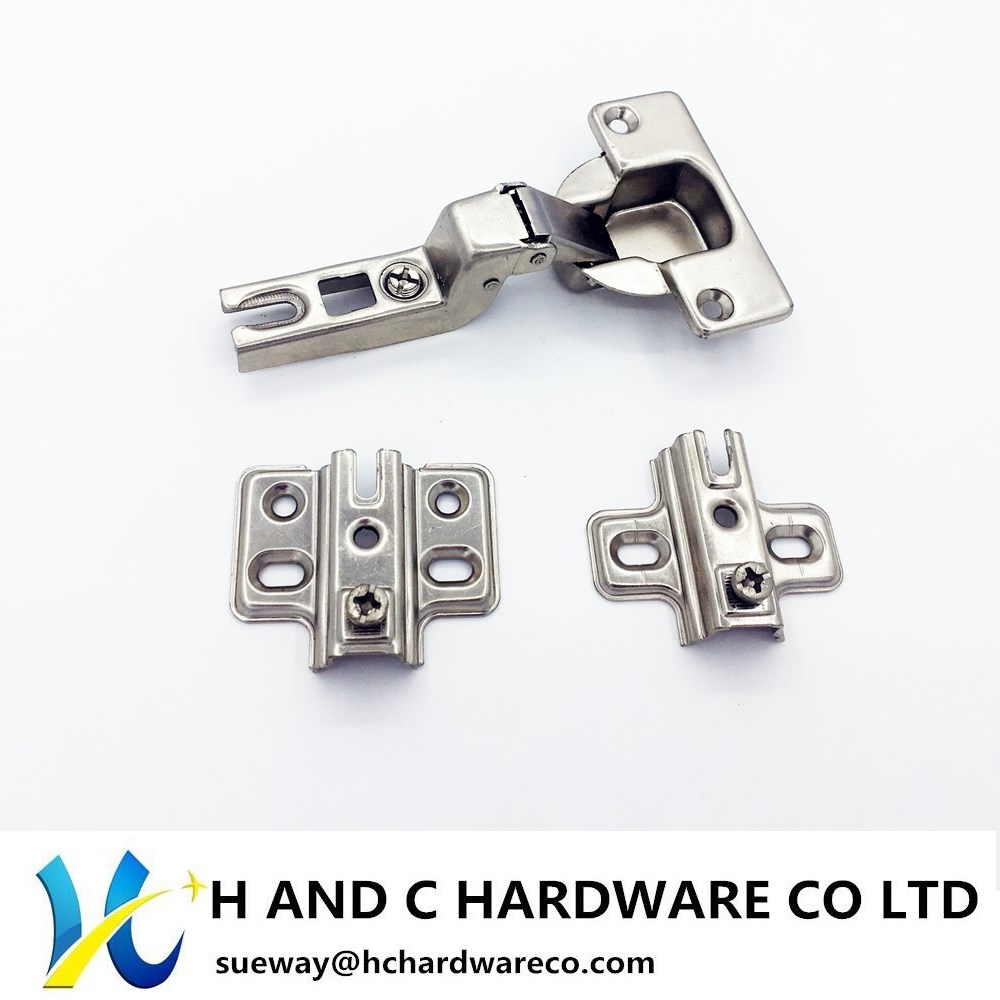

40MM Cup Slide On Hinge, Two Way

Share:

Product description :

Slide On Hinge, Two Way



Product introduce:

Item No: E409 , E408 , E407 , E406

Type installation : Full overlay , Half overlay , Inset

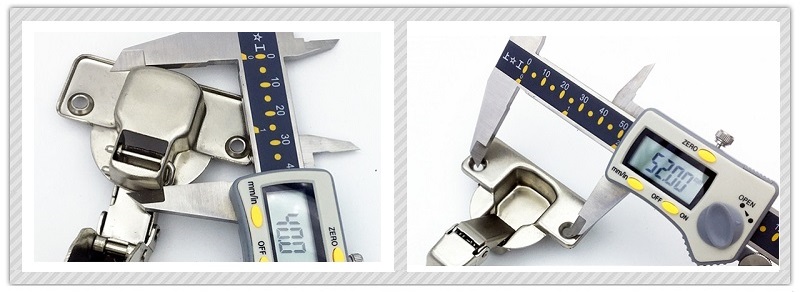

Cup diameter : 40mm

Cup hole distance : 52mm

Opening angle : 105degree

Thickness of hinge cup : 11.3mm

Range for door thickness: 14-18mm

Package: 200pcs/Carton , or customize

Origin: China



Advantage:
1. Good nickel plating
2. 50,000 times open-close test



Application :

Home furniture ( House cabinet ) or Office furniture ( Office cabinet )



Product details :

Item No

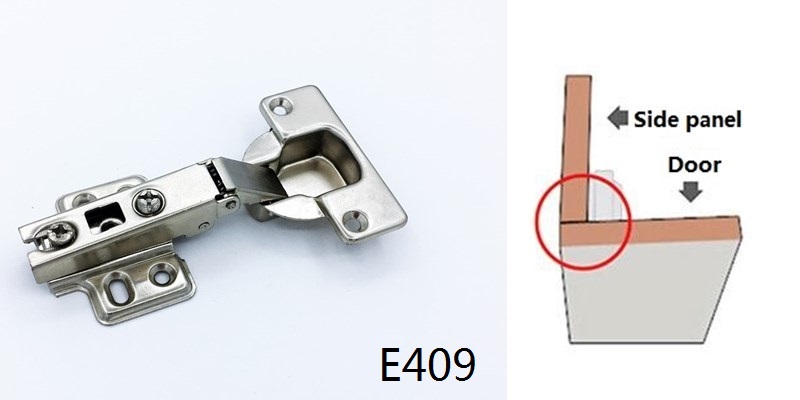

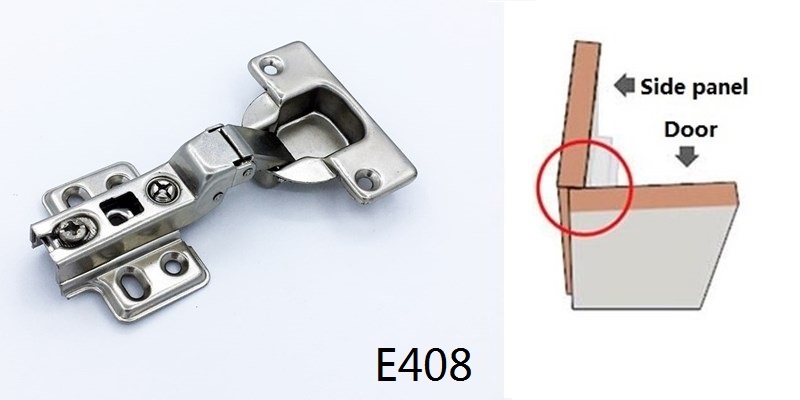

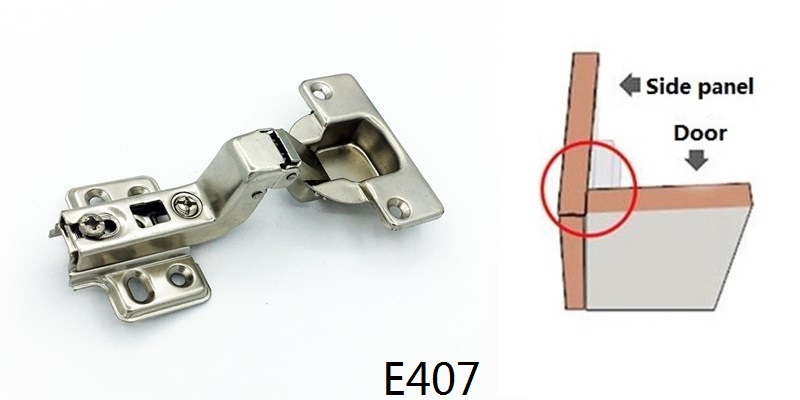

E409 Full overlay  /  E408 Half overlay  /  E407 Inset C=16  /  E406 Inset C=18

PlateReglar plate (slide on) , 2holes or 4holes
MaterialCold rolled steel
Surface treatmentNickel plated
ProcessingStamping
ServiceOEM / ODM   ;   To chart for free sample
