40MM Cup Hydraulic hinge, clip on

Share:

Product description :

Hydraulic hinge (soft close hinge), clip on



Product introduce:

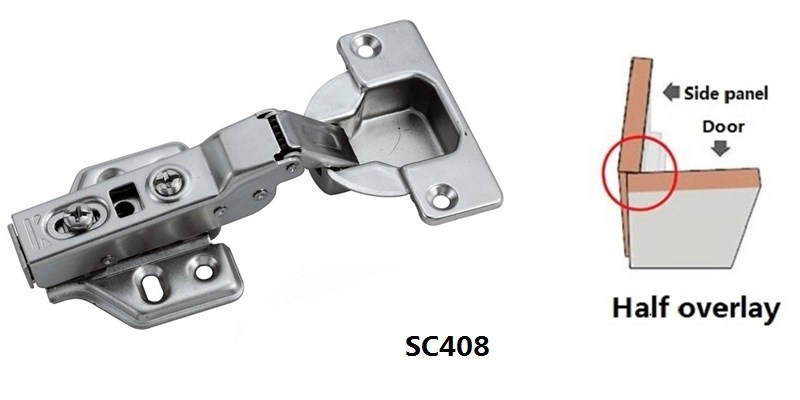

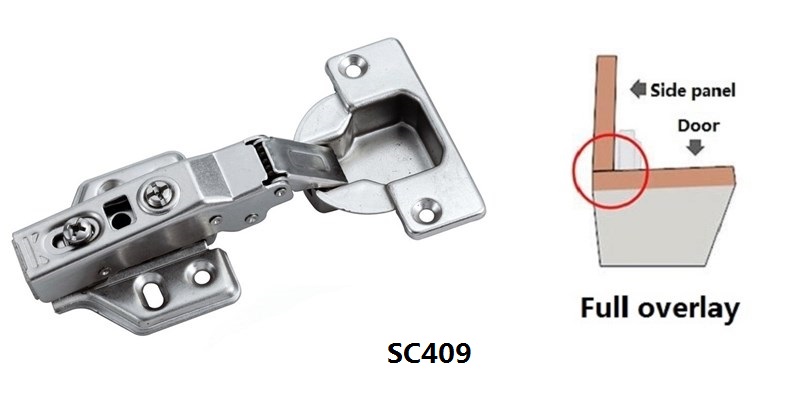

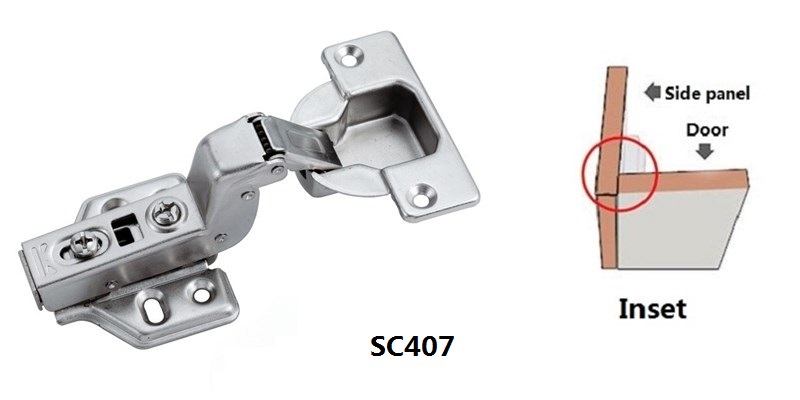

Item No: SC409 , SC408 , SC407

Type installation : Full overlay , Half overlay , Inset

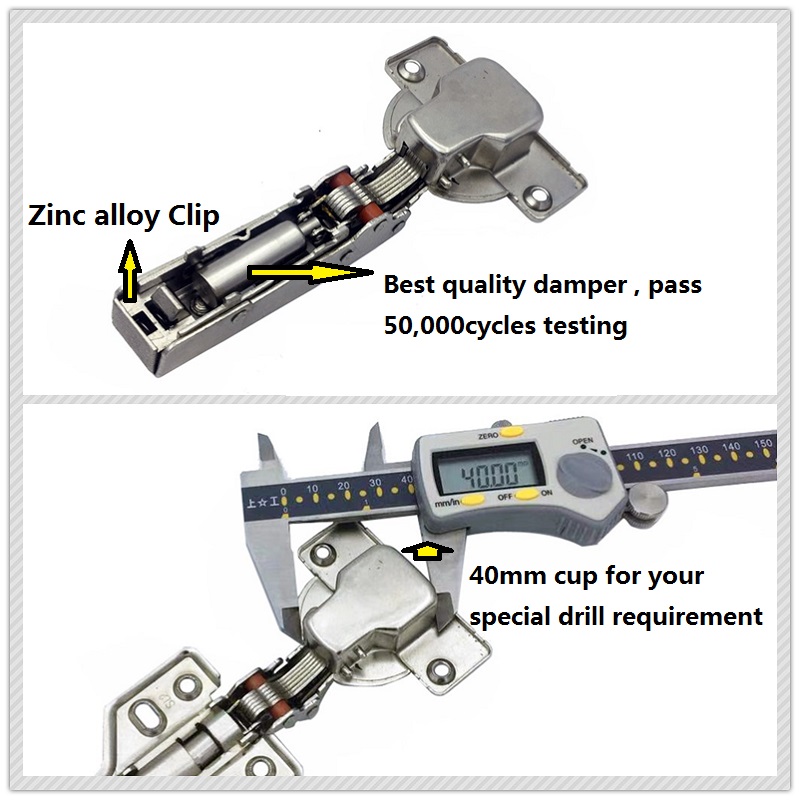

Cup diameter : 40mm

Cup hole distance : 52mm

Opening angle : 105degree

Thickness of hinge cup : 11.3mm

Range for door thickness: 14-18mm

Package: 200pcs/Carton , or customize

Origin: China


Function : 40mm cup Soft close hinge, clip on


Advantage:
1. Good nickel plating
2. 50,000 times open-close test


Application :

Home furniture( House cabinet) or Office furniture ( Office cabinet )



Product details :

Item NoSC409 Full overlay  /  SC408 Half overlay  /  SC407 Inset
PlateClip on , 2holes or 4holes
MaterialCold rolled steel
Surface treatmentNickel plated
ProcessingStamping
ServiceOEM / ODM   ;   To chart for free sample
