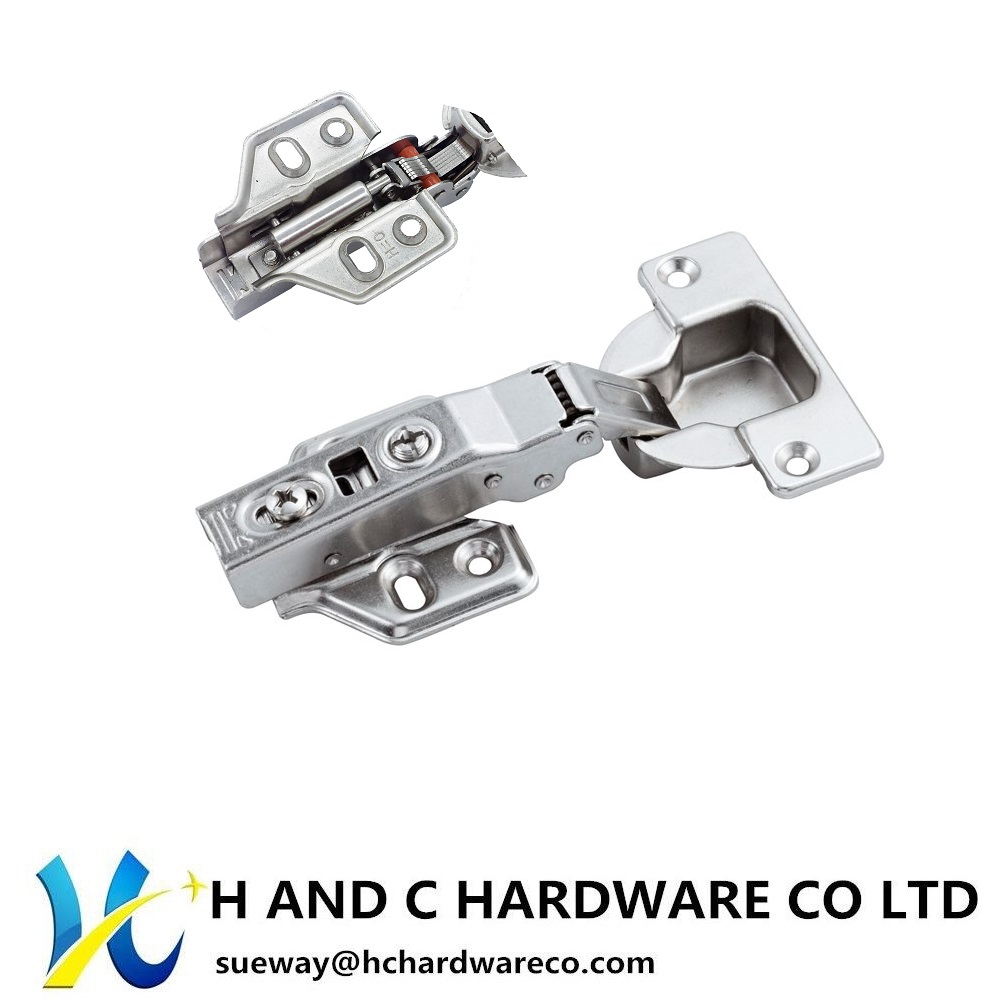

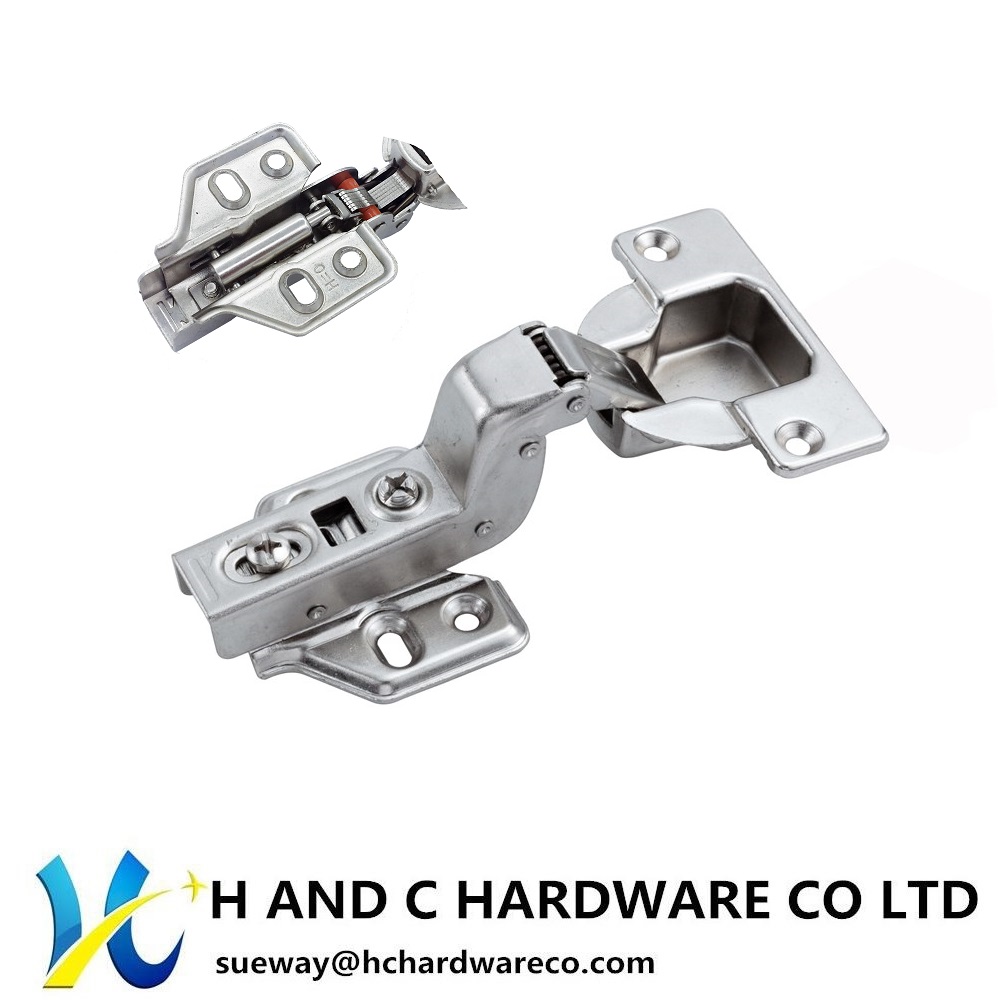

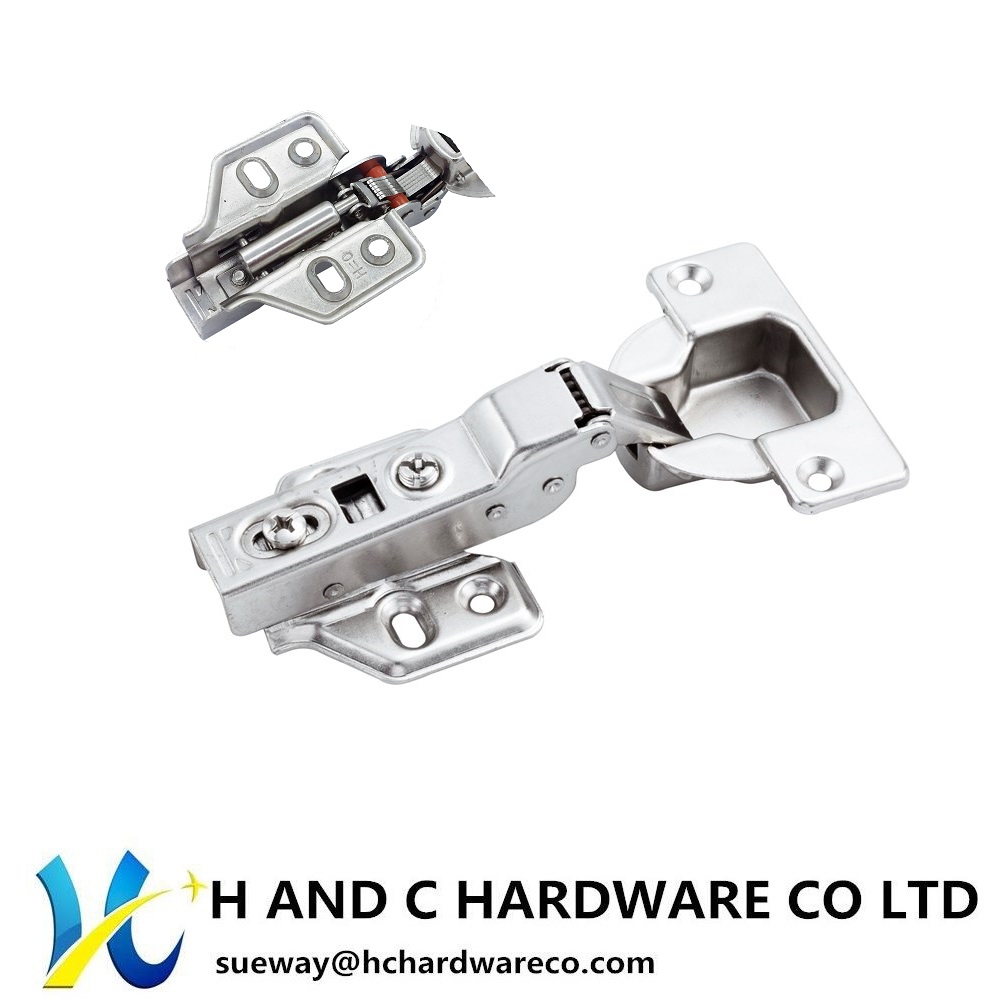

40MM Cup Hydraulic hinge, fixed plate

Share:

Product description :

Hydraulic hinge (soft close hinge), fixed plate



Product introduce:

Item No: SG409 , SG408 , SG407

Type installation : Full overlay , Half overlay , Inset

Cup diameter : 40mm

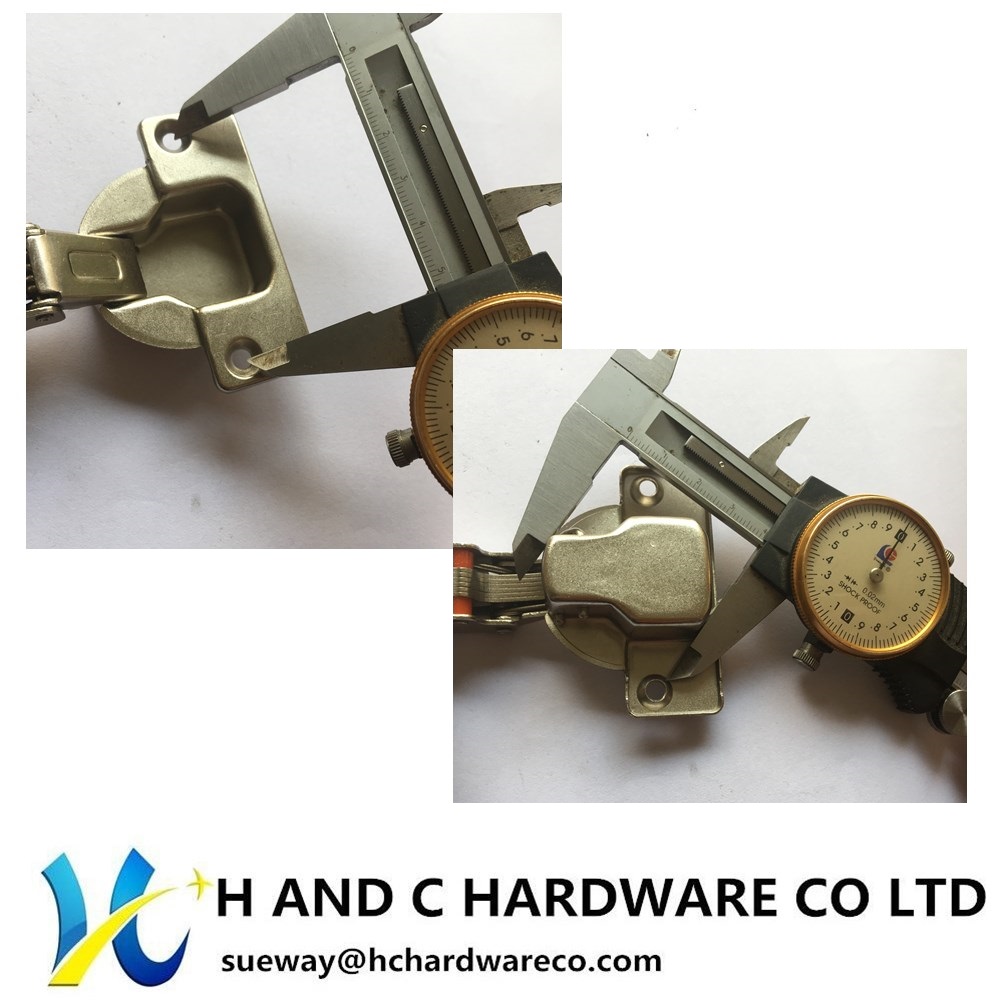

Cup hole distance : 52mm

Opening angle : 105degree

Thickness of hinge cup : 11.3mm

Range for door thickness: 14-18mm

Package: 200pcs/Carton , or customize

Origin: China


Function : 40mm cup Soft close hinge, fixed plate


Advantage:
1. Good nickel plating
2. 50,000 times open-close test


Application :

Home furniture( House cabinet) or Office furniture ( Office cabinet )



Product details :

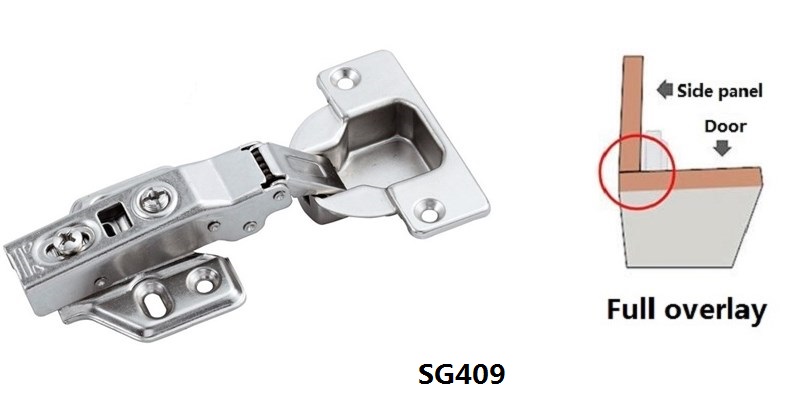

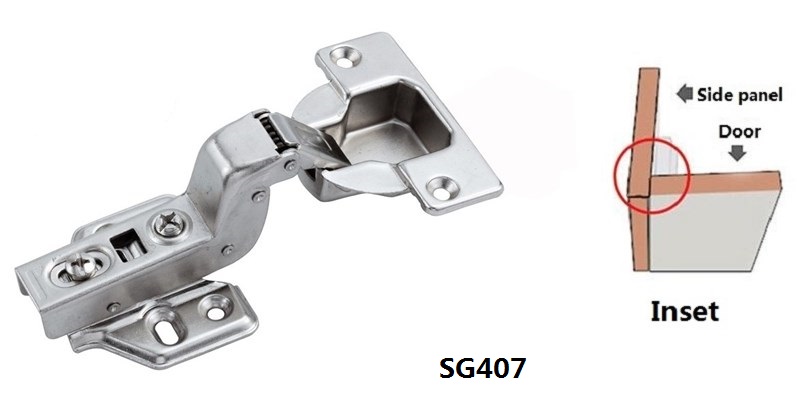

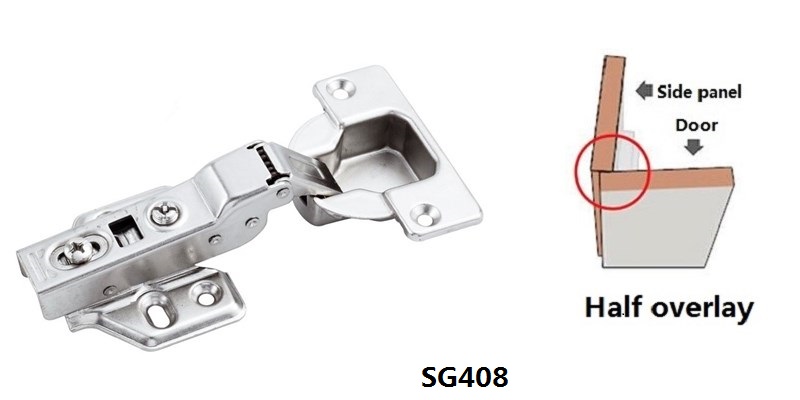

Item NoSG409 Full overlay  /  SG408 Half overlay  /  SG407 Inset

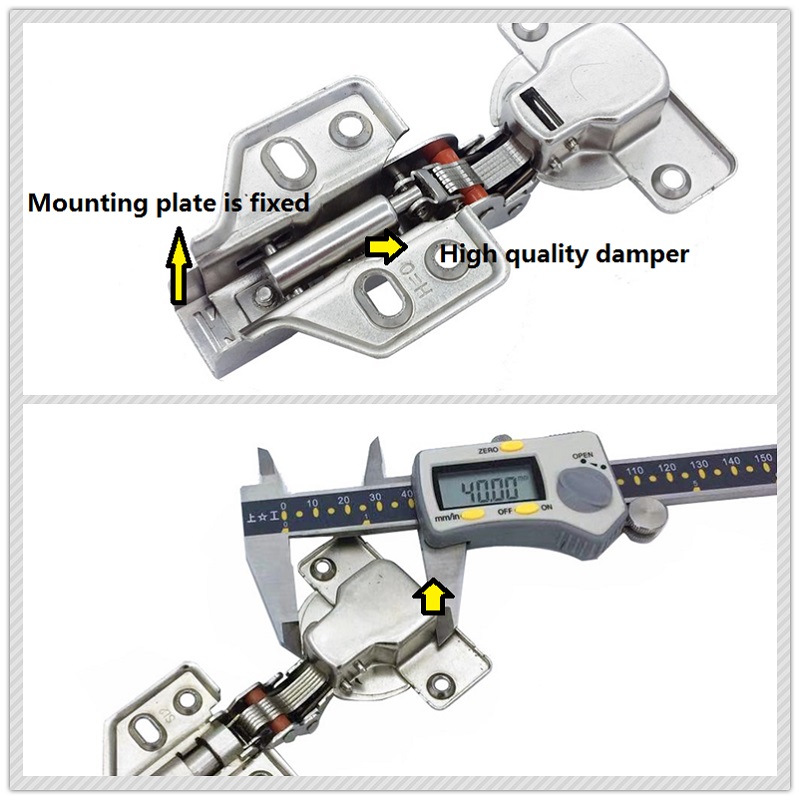

PlateFixed plate , 2holes or 4holes
MaterialCold rolled steel
Surface treatmentNickel plated
ProcessingStamping
ServiceOEM / ODM   ;   To chart for free sample
