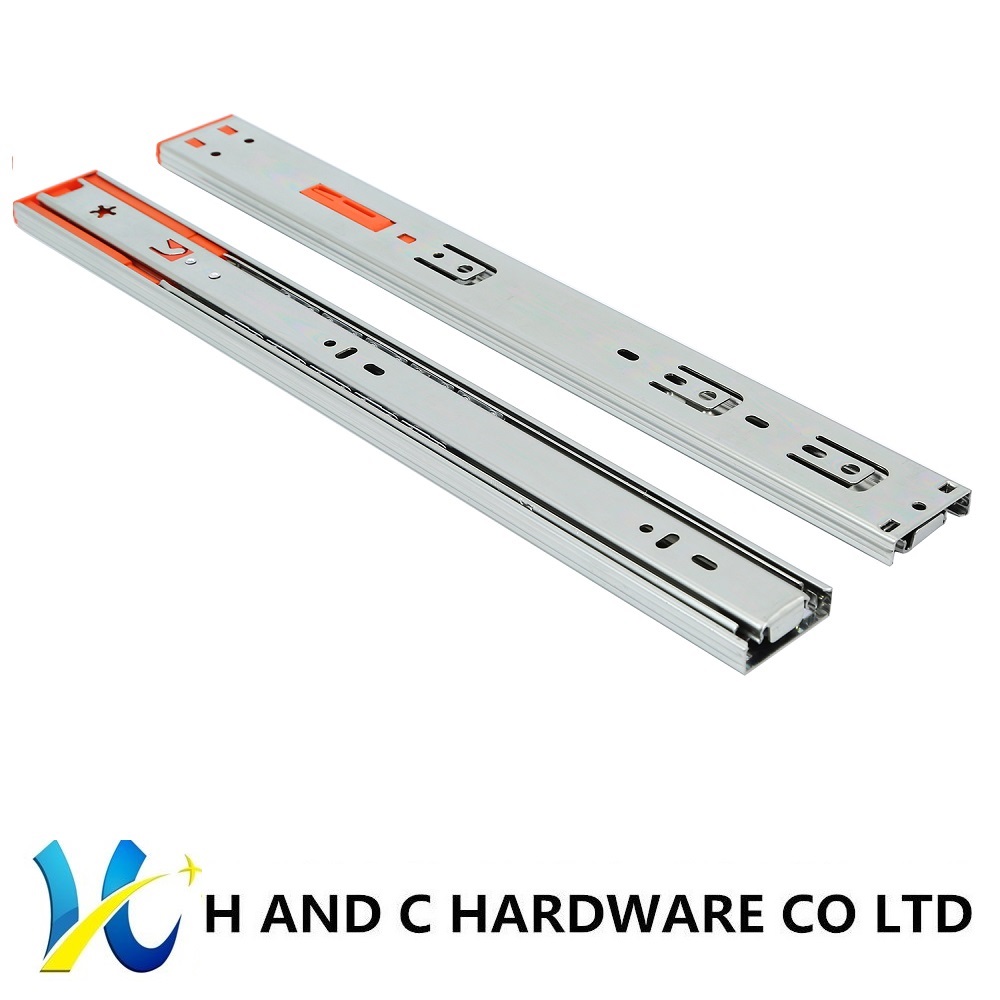

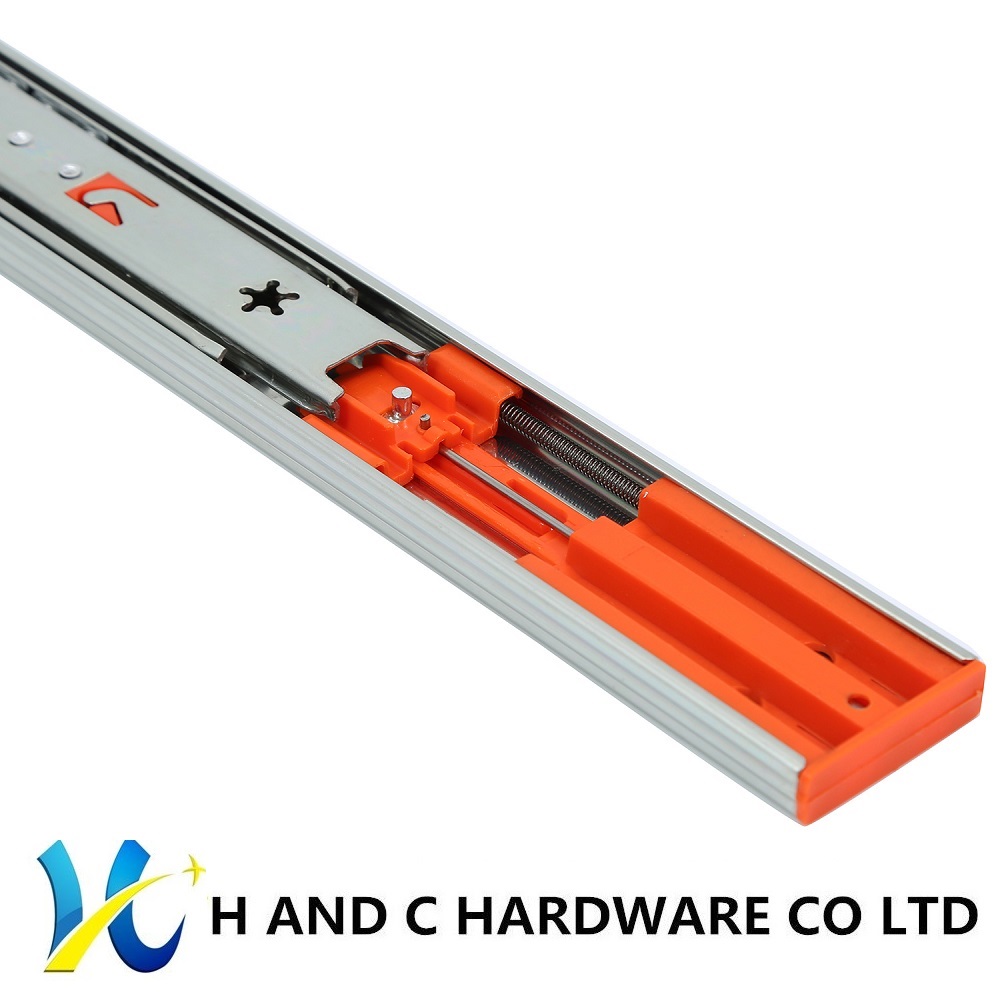

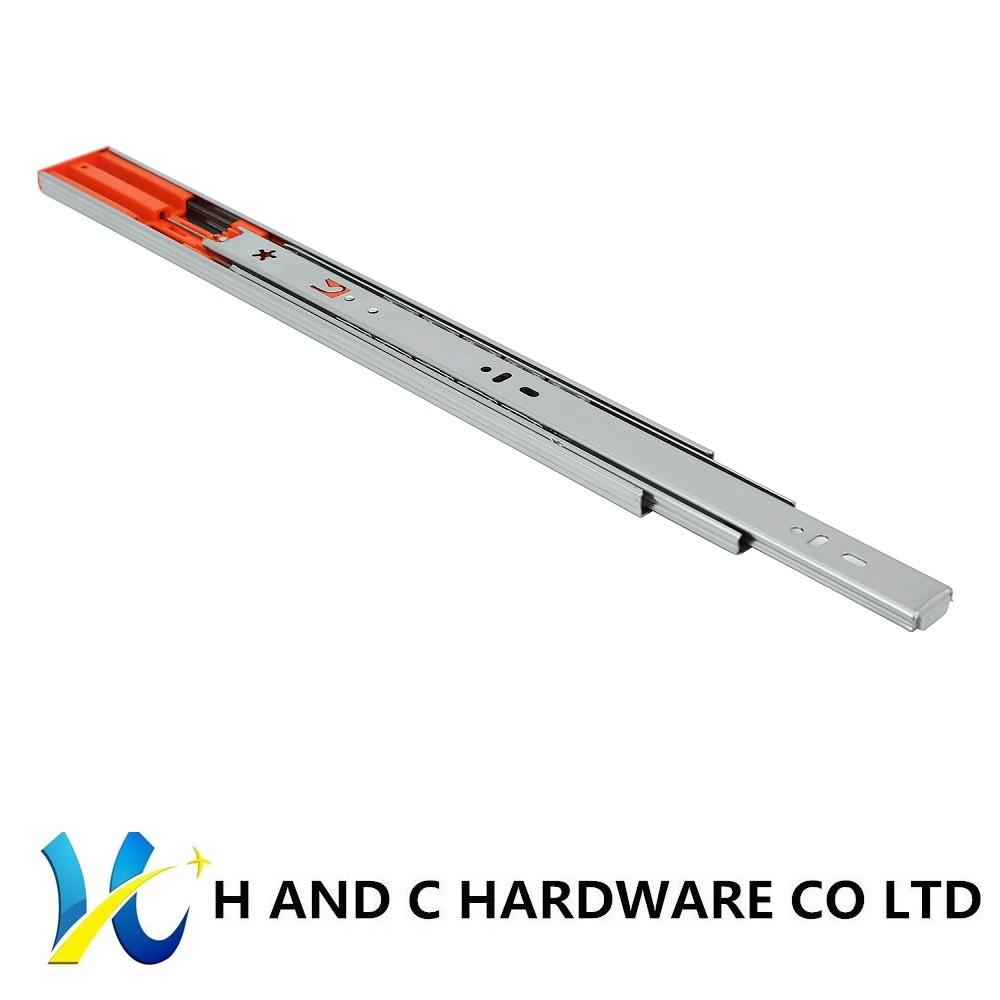

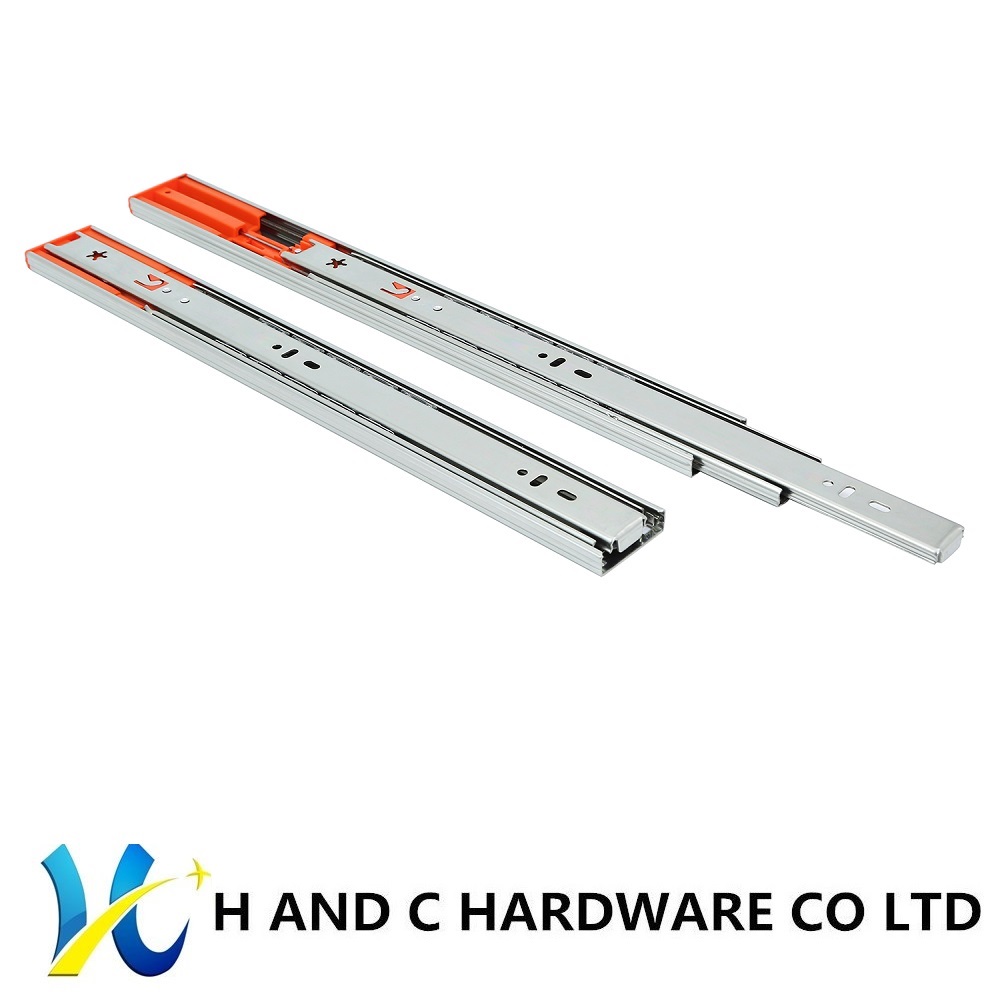

Full extension Ball bearing slide, Soft close ( Double spring )



1.Slider is guaranteed smooth movement without noise .High strength
2.Solid Ball guarantee smoothness .
3.Excellent cold rolled steel ensure you high prevision and load capacity .
4.Soft closing function makes drawer close gently and with effect of weight .
| Item No. | HH4503 |
| Description | 45mm Ball Bearing Slider -with soft close(Double Spring) |
| Width | 45mm |
| Length | 250mm(12") - 600mm(24") |
| Extension | Full extension (3fold) |
| Material | Cold rolled steel |
| Surface treatment | Zinc or Black |
| Thickness | 1.0x1.0x1.2mm / 1.2x1.2x1.4mm |
| Processing | Stamping |
| Package | 15pairs/Carton |
Zinc or Black

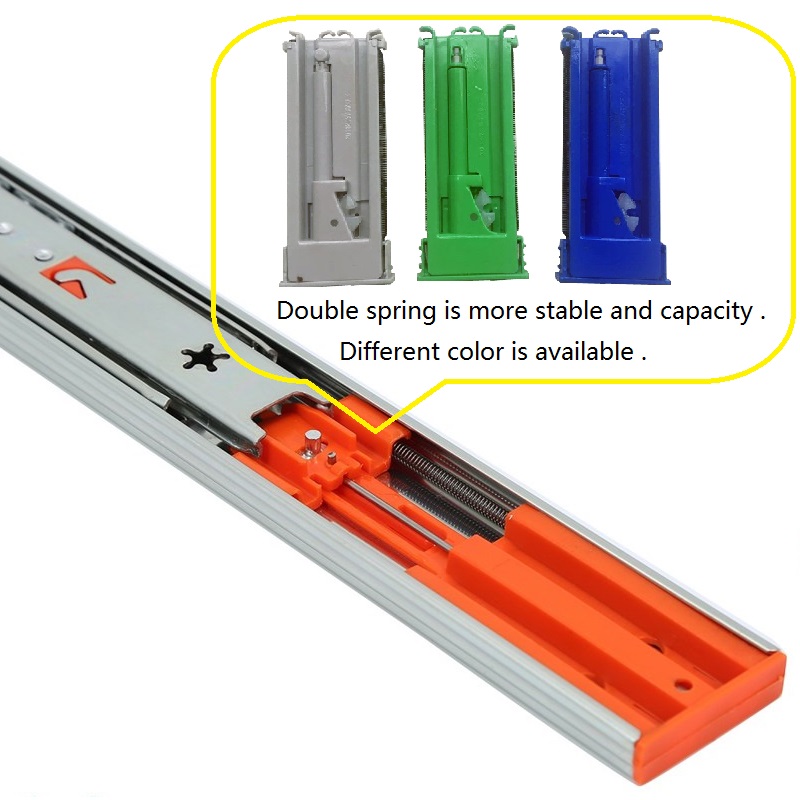

1.Function: Soft close(Two spring).
2.Load capacity: 30-45KGS
3.Put drawer on slide horizontally and push into cabinet to finish installation .
