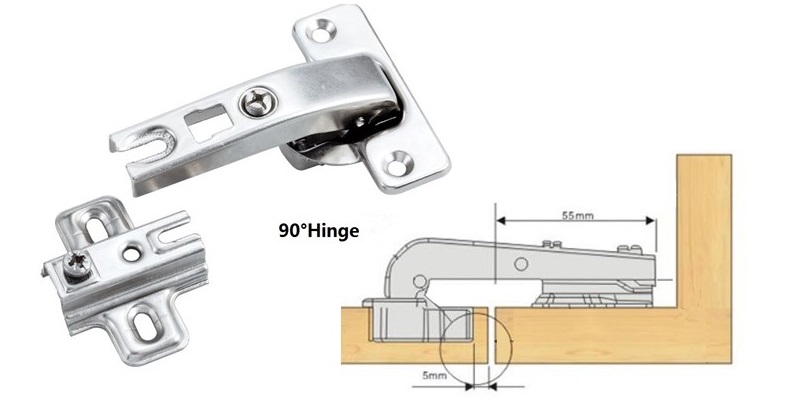

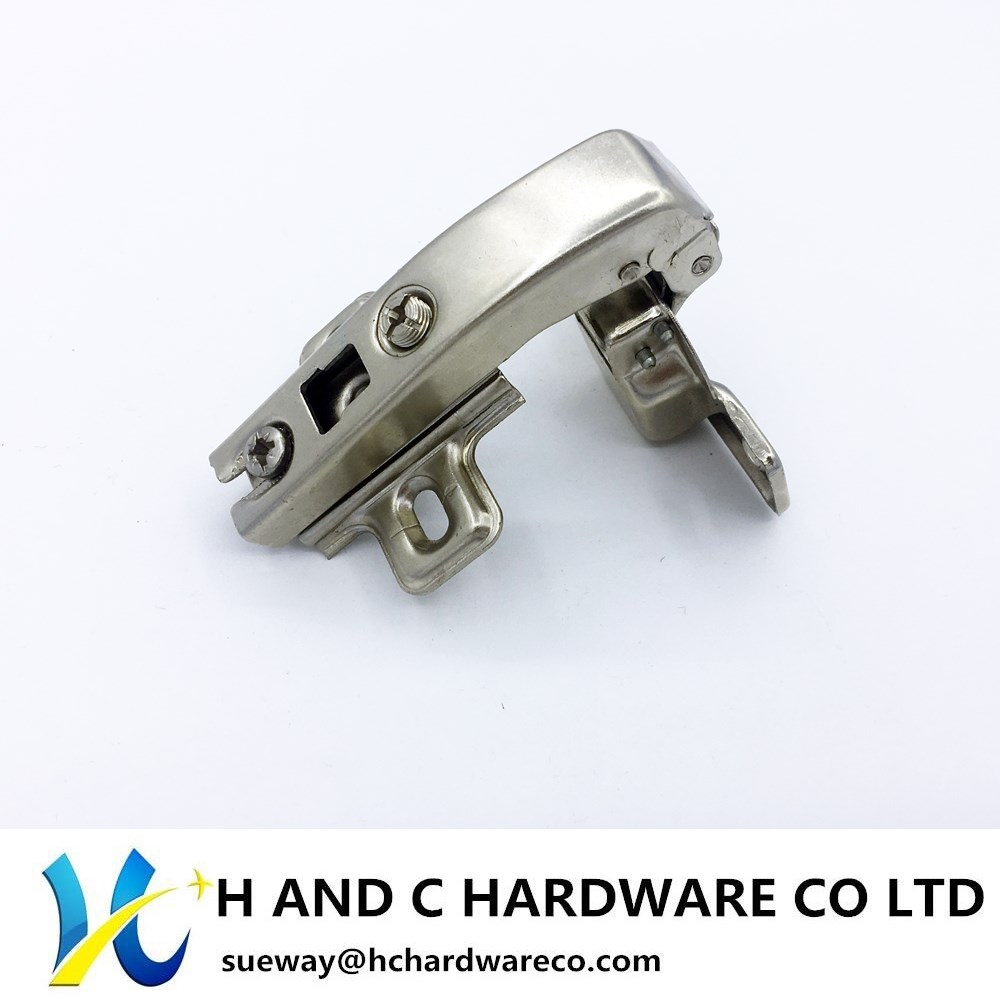

90degree Angle Hinge, Slide On, Two Way

Share:

Product description :

90 degree Angle hinge , Slide on , two way

90degree Angle Hinge, Slide On, Two Way

Product introduce:

Item No: E90

Cup diameter : 35mm

Cup hole distance : 48mm

Opening angle : 90degree

Thickness of hinge cup : 11.3mm

Range for door thickness: 14-18mm

Package: 200pcs/Carton , or customize

Origin: China


Function : 90degree angle hinge


Advantage:
1. Good nickel plating
2. 50,000 times open-close test


Application :

Home furniture( House cabinet) or Office furniture ( Office cabinet )



Product details :

Item NoE90

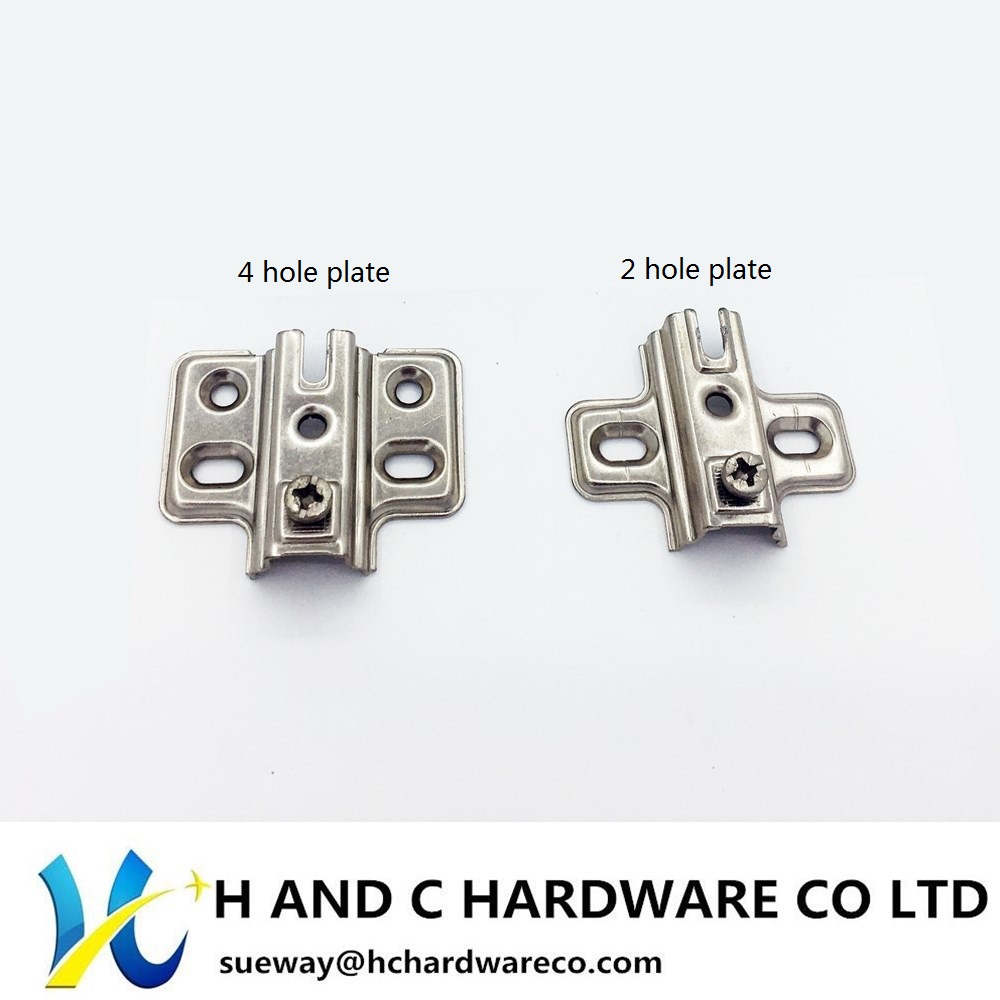

PlateRegular plate , 2holes or 4holes
MaterialCold rolled steel
Surface treatmentNickel plated
ProcessingStamping
ServiceOEM / ODM   ;   To chart for free sample
