Hydraulic Hinge , Clip On

Share:

Product description :

Hydraulic cabinet hinge (soft close cabinet hinge), clip on



Product introduce:

Item No: SC109 , SC108 , SC107

Type installation : Full overlay , Half overlay , Inset

Cup diameter : 35mm

Cup hole distance : 48mm

Opening angle : 105degree

Thickness of hinge cup : 11.3mm

Range for door thickness: 14-18mm

Package: 200pcs/Carton , or customize

Origin: China

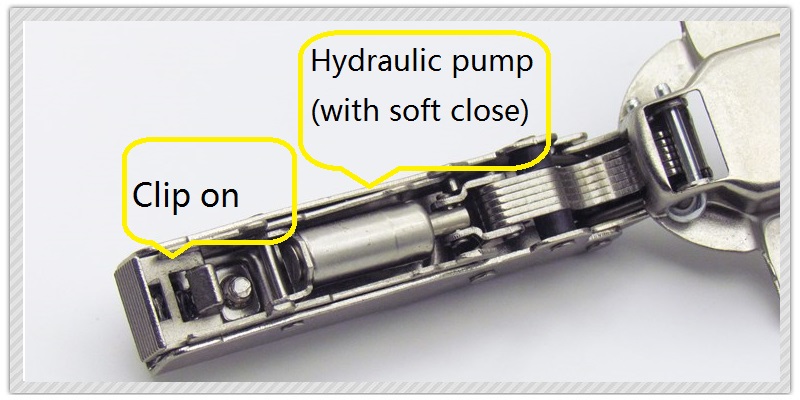

Function : soft close cabinet hinge , clip on


Advantage:
1. Good nickel plating
2. 50,000 times open-close test

3. Smooth soft close


Application :

Home furniture( House cabinet) or Office furniture ( Office cabinet )



Product details :

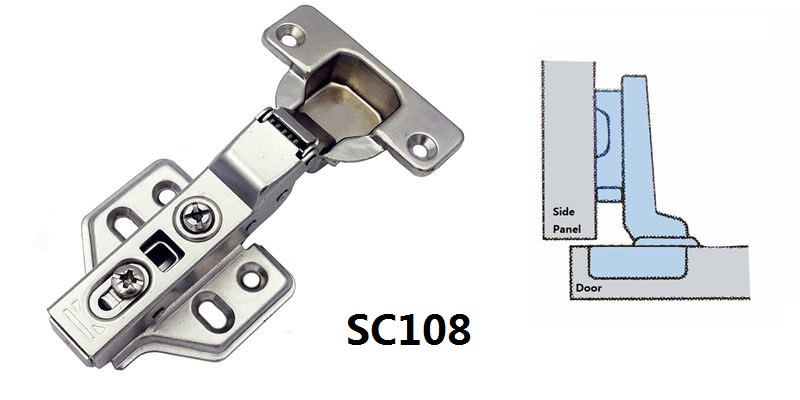

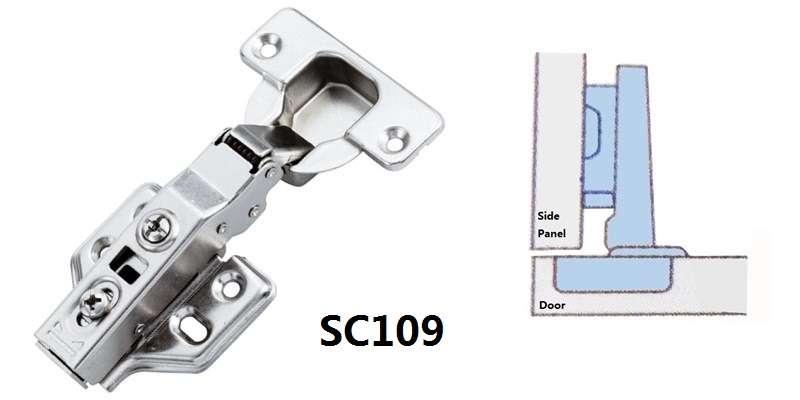

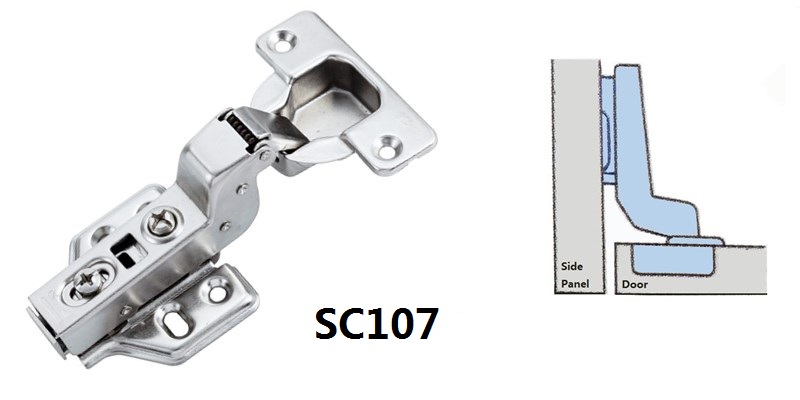

Item NoSC109 Full overlay  /  SC108 Half overlay  /  SC107 Inset

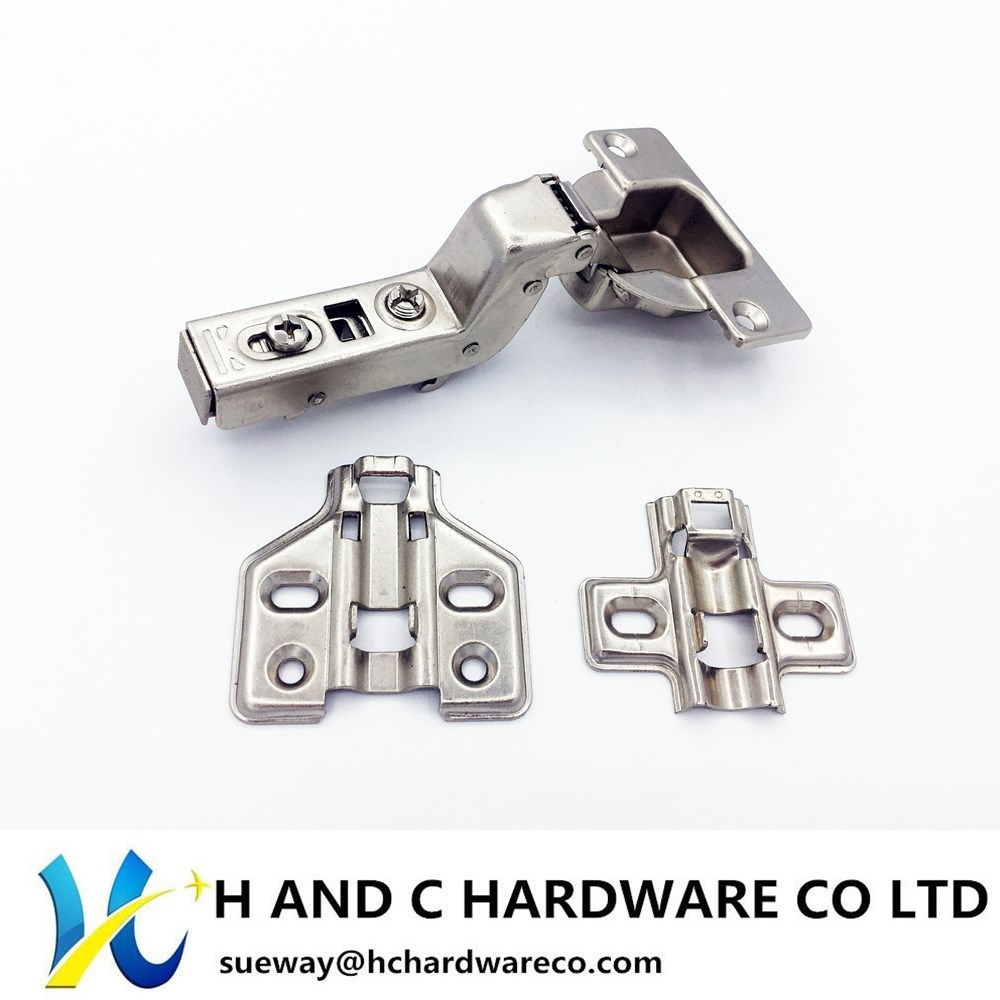

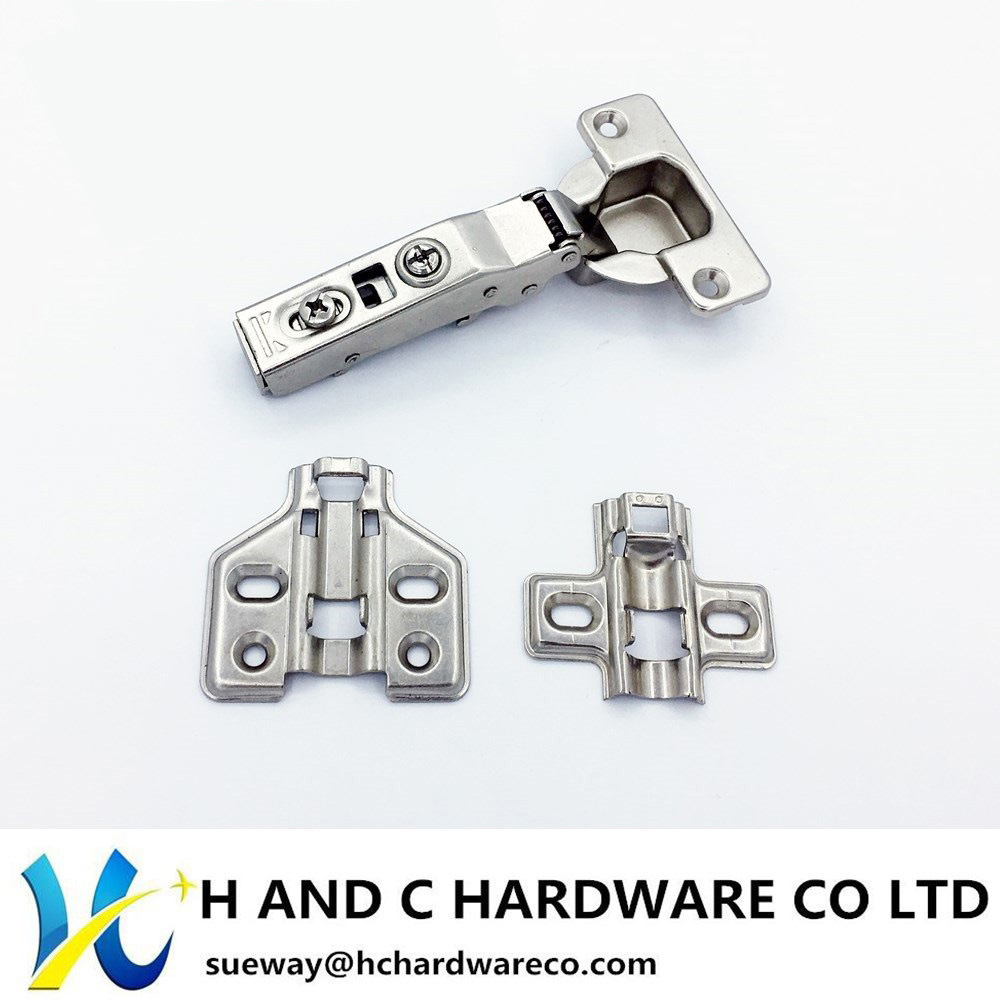

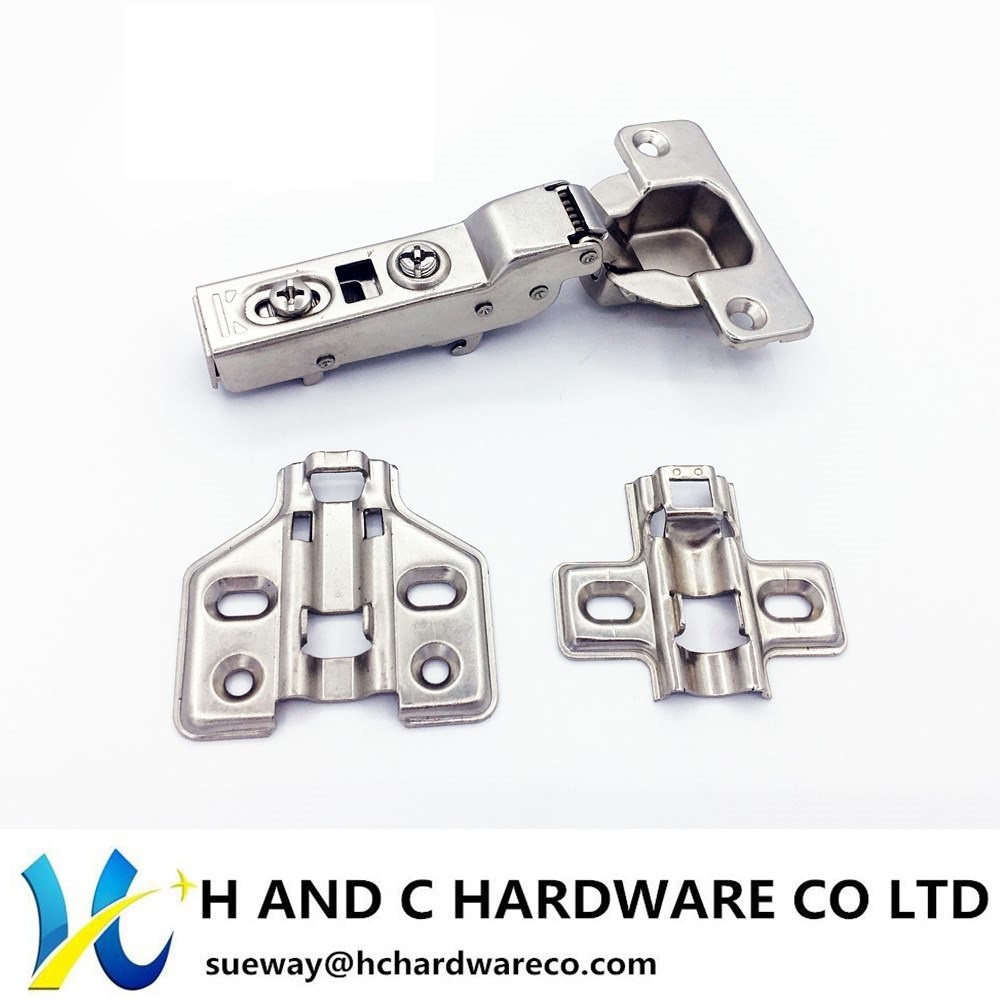

Plateclip on , 2holes or 4holes
MaterialCold rolled steel
Surface treatmentNickel plated
ProcessingStamping
ServiceOEM / ODM   ;   To chart for free sample
