Clip on Hinge Two Way

Share:

Product description :

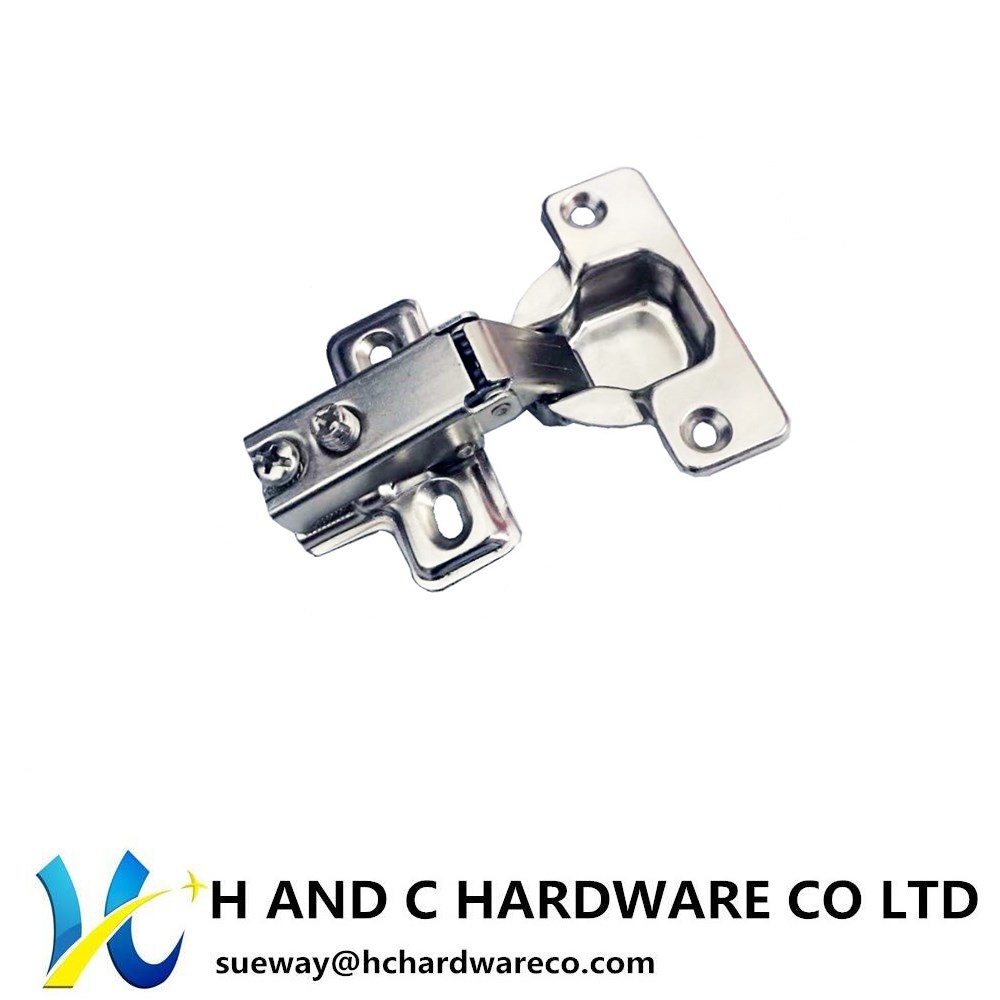

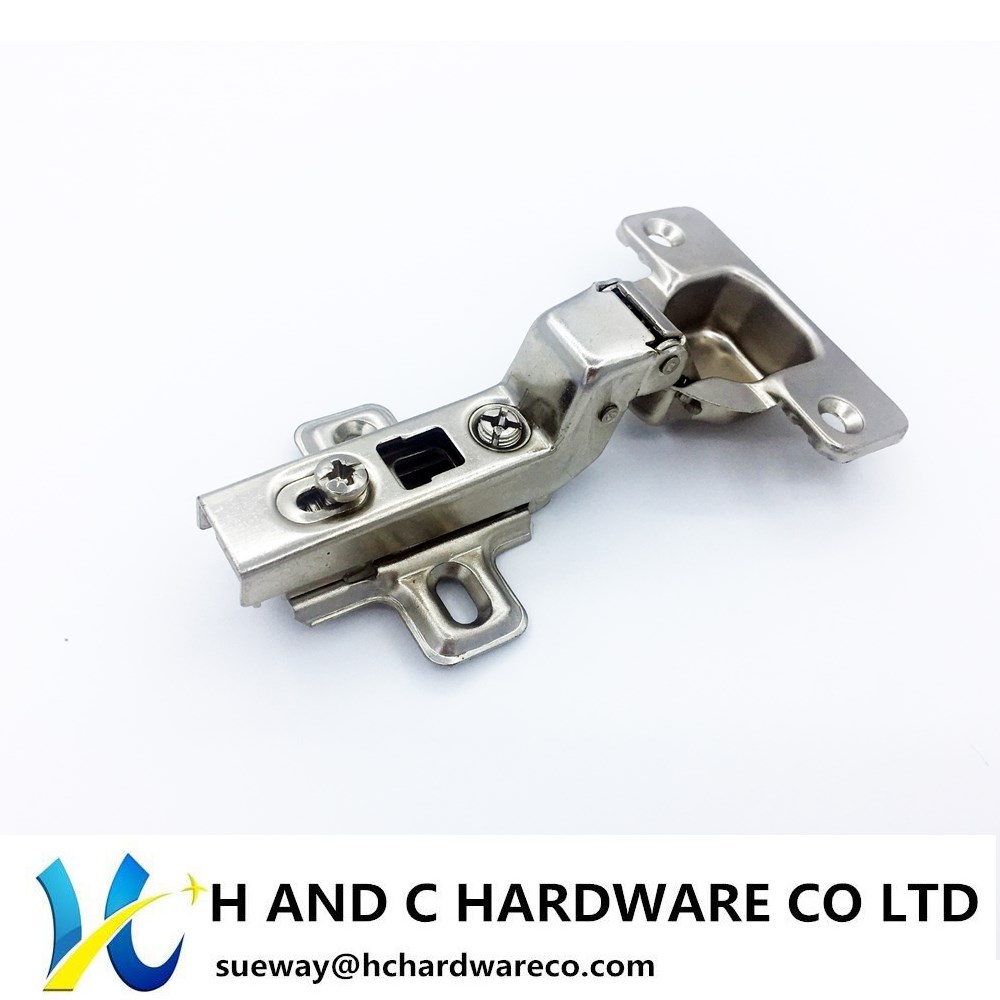

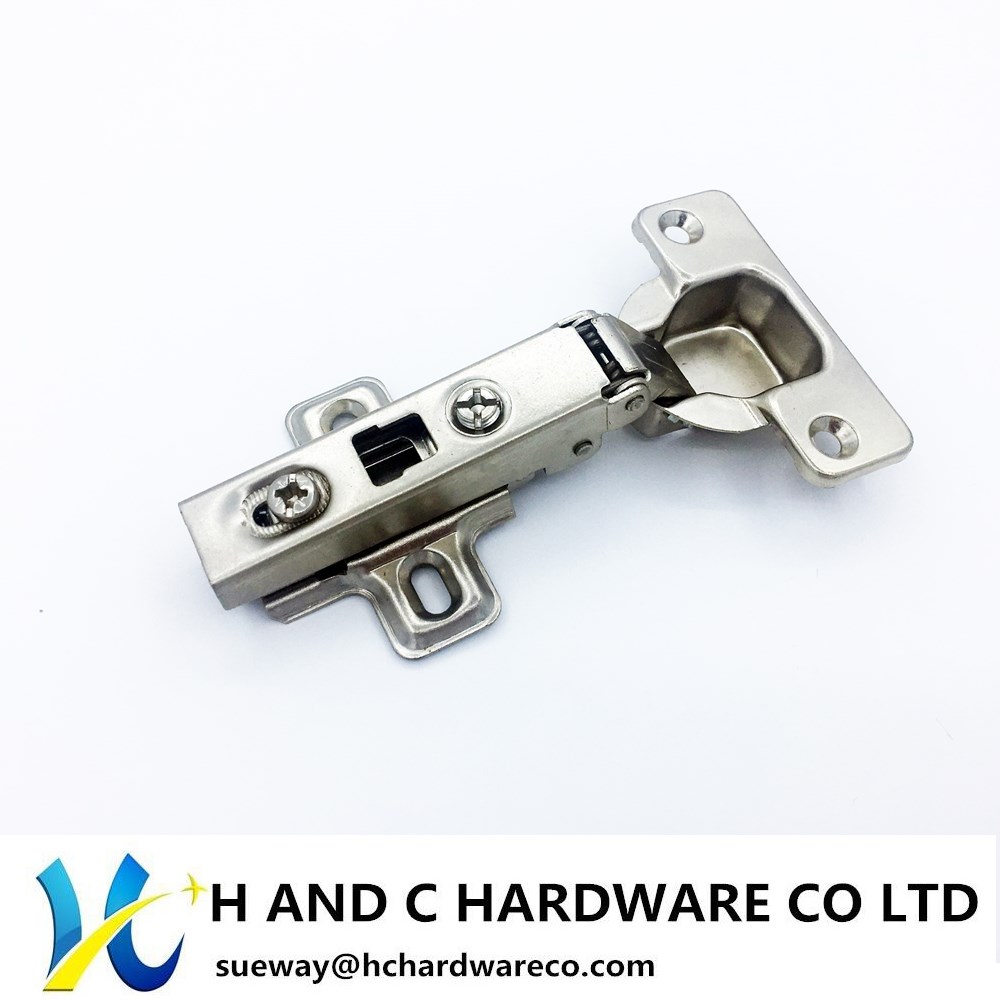

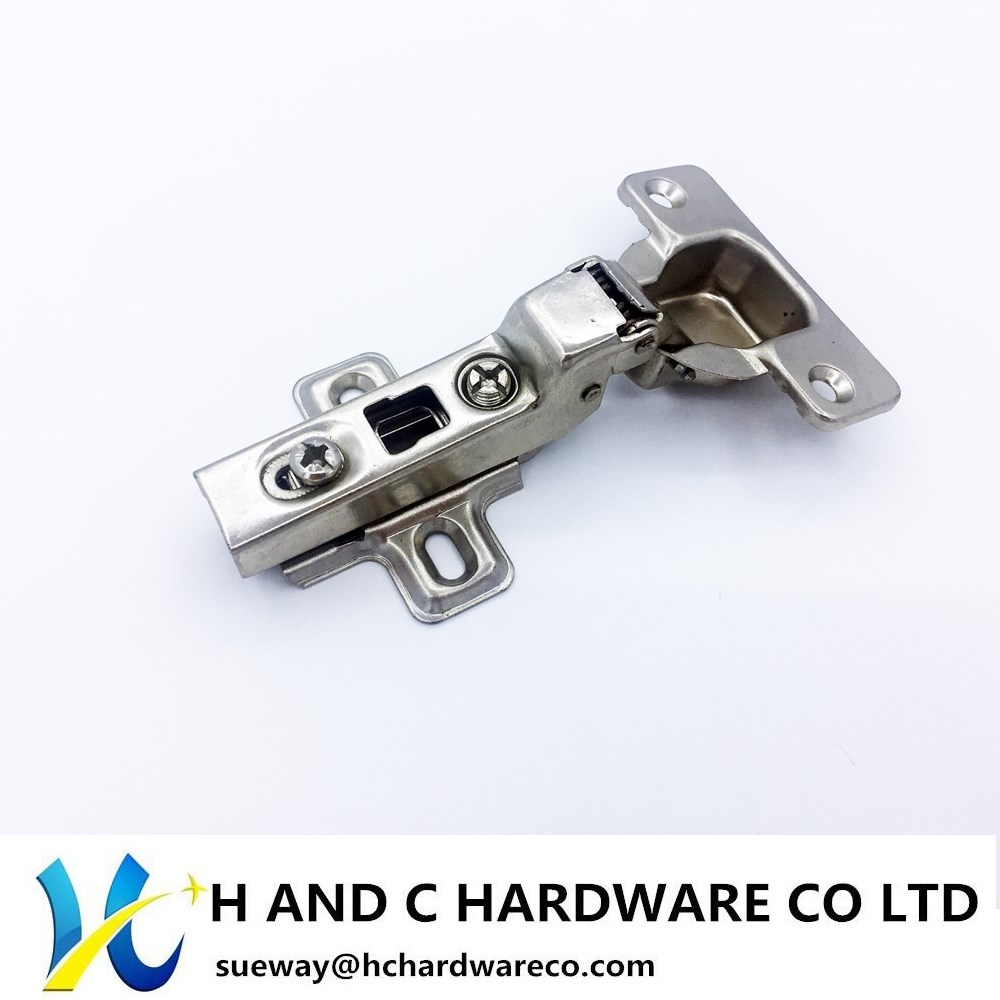

Clip on cabinet hinge , two way



Product introduce:

Item No: E109K , E108K , E107K

Type installation : Full overlay , Half overlay , Inset

Cup diameter : 35mm

Cup hole distance : 48mm

Opening angle : 105degree

Thickness of hinge cup : 11.3mm

Range for door thickness: 14-18mm

Package: 200pcs/Carton , or customize

Origin: China


Function : Regular cabinet hinge


Advantage:
1. Good nickel plating
2. 50,000 times open-close test


Application :

Home furniture( House cabinet) or Office furniture ( Office cabinet )



Product details :

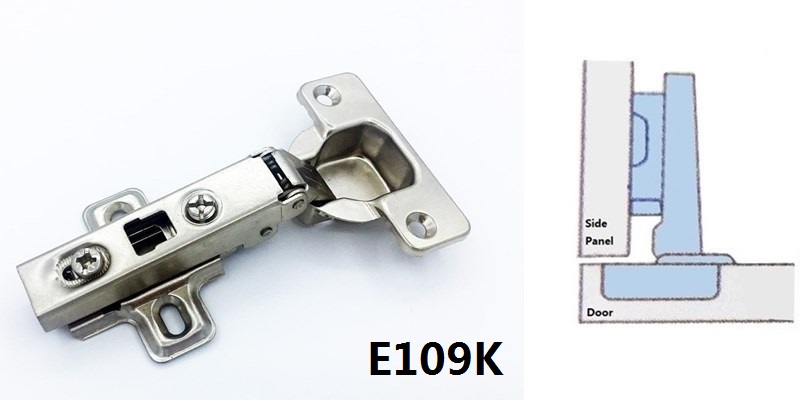

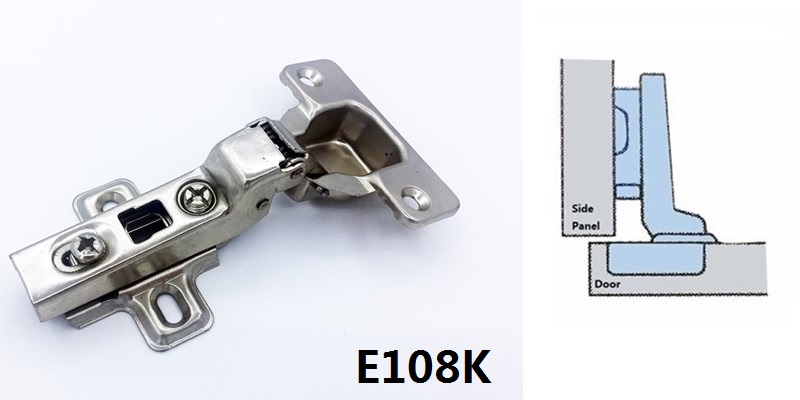

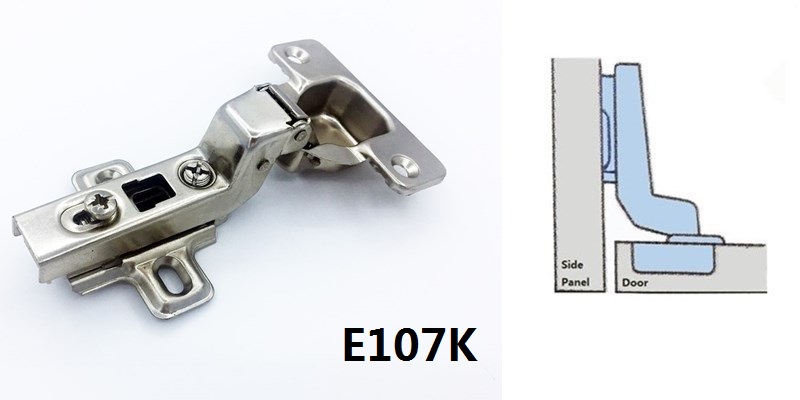

Item NoE109K Full overlay  /  E108K Half overlay  /  E107K Inset

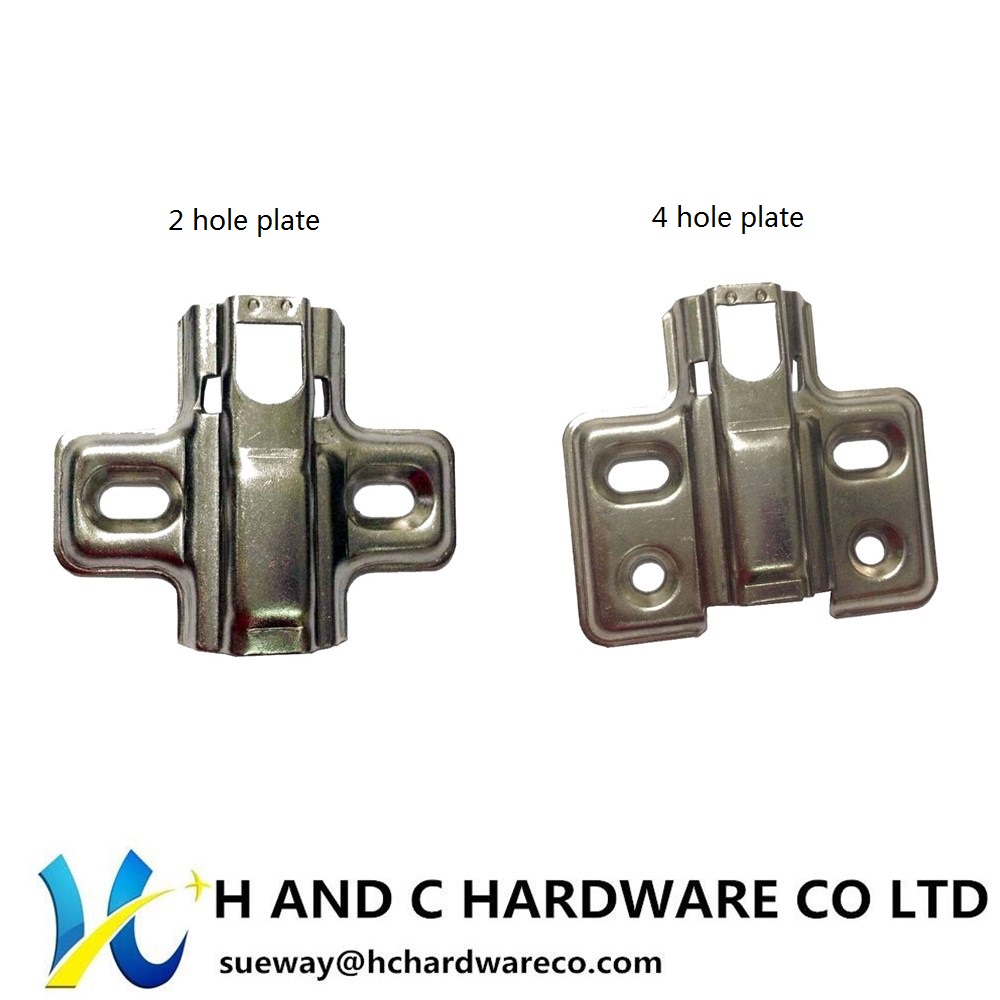

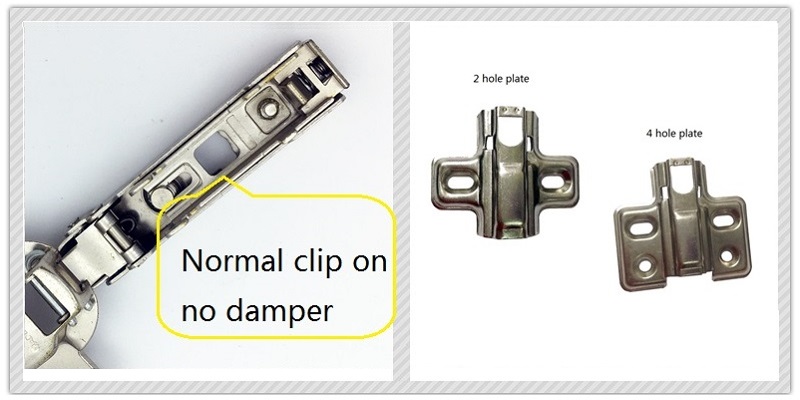

Plate2holes or 4holes
MaterialCold rolled steel
Surface treatmentNickel plated
ProcessingStamping
ServiceOEM / ODM   ;   To chart for free sample
